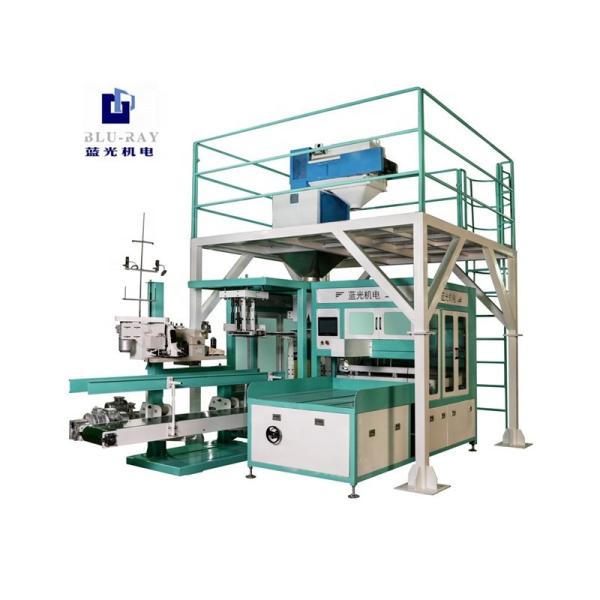

- Automatic granule packing machine Technical parameter

- Voltage: AC380V/50HZ

- Power: 3.5kw

- Air source: 0.5-0.7Mpa

- Size: 4000*2800*2400mm

- Packing speed: 500-600bags/hour

- N.w: 2300kg

- Packing range: 20-50kg

- Aplication bags: woven bags, paper bags, plastic bags etc

Aplication

The Automatic granule packing machine suit for weighing and bagging 20kg-50kg granule materials such as animal feed, fertilizer, grains, rice, pp plastic particles, beans etc

It's all full automatic, no need any person, automatic bag pick and giving-automatic feeding weighing and bag moving-automatic sewing

The bag can be closed by heat sealing for lining/plastic bags and sewing(thread stitching) for woven bags, paper bags, kraft bags, sacks etc.

Bag type:

Our Automatic granule packing machine can working with the automatic sewing machine closed the woven bags, kraft bags, paper bags or sacks by thread stitching and automatic thread cut.

Futures

1, Gravity feeder with three stroke air cylinder, provide three grade feeding speed with fast feeding-medium feeding-slow feeding, more fast, more high precision

2, Installation 3pcs load cell, each load cell max weight 200kg, IP67 grade, high weighing accuracy, working more stable

3, Dual control system, the CHIMEI weighing instrument and PLC control system

4, Color touch screen HMI, easy operation

5, PLC system operation by 10" touch screen

6, Installation 2pcs of proximity switch and 2pcs cylinder, bag clamp more tighter, more safe

7, Automatic bag sewing and sewing conveyor speed adjustable

8, Parts of famous brand, such as Delta, Schneider, CHNT, AirTAC

Packing & Shipping

The packing machine before sent to you will installation and testing welled then whole set packed in the big wooden box then in container.

When you received the packing machine, you no need installation again, connect your electric wire and air source to the packing machine then can working.

Parts Supplier:

Our packing machine accessories all use the famous brand, such as pneumatic element use the AirTAC, HMI(color touch screen panel) use the WEINVIEW/ Delta, the electric element we use the Schneider/CHNT,

the load cell we installation 3pcs KELI load cell(max weight 200kg/pc, IP67) or Mettler Toledo as you need.

The bagging machine can stable working more than 5 years.

Company Information

We are the group company that founded in 2004, we have two factory Jiangxi Leader High-Tech LLC and Jiangxi Blueray

Mechanical and Electric Equipment Co., Ltd.

The factory located at Nanchang city Jiangxi province of China, specialized in the R&D, manufacturing and marketing of

semi auto/full auto packing machines, jumbo bag packing machine, automatic bag palletizer, sewing machine, conveyor,

bucket elevator, batching system and complet equipment of animal feed etc.

Our company have 100000 square meters working shop, more than 150 workers and over 50 people engineers & sales team 24hours

provide you high quality machinery and professional export/import service. After years of hardwork, our products have

export to more than 30 countries in the world witch widely used in the files of animal feed, fertilizer, compost, mining,rice,

grain, plastic particals, nuts, flour, starches, sand, soil, gravel, port packing etc.

FAQ:

1. Can you offer oversea service?

Engineers available to service overseas.

2. How to use the machine?

Before send to you the packing machine, we will installation and testing welled then whole set packed in the wooden box, so you no need installation again,

when you received it, you can start working, also we will supply the installation catalogue or video online, if necessary we can dispatch enigneers to your site.

4. How about the guarantee period?

One year whole machine guarantee.

5. What's the payment term?

L/C or TT is accepted.

Contact: 7*24 Hours Online Service

If you need packing other materials/products or any query about the packing machine, please do not hesitate

to send me the email or call us.
