Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine

    Buy cheap Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine from wholesalers

    Buy cheap Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine from wholesalers
    • Buy cheap Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine from wholesalers
    • Buy cheap Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine from wholesalers
    • Buy cheap Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine from wholesalers
    • Buy cheap Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine from wholesalers
    • Buy cheap Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine from wholesalers

    Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine

    Ask Lasest Price
    Brand Name : BLU-RAY
    Model Number : ZDBZ-600
    Certification : CE Certificate
    Price : $30,000.00 - $60,000.00 / Set
    Supply Ability : 100 Set/Sets per Month automatic bagging machine
    Delivery Time : 35-40 working days
    • Product Details
    • Company Profile

    Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine

    Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine
    Description:

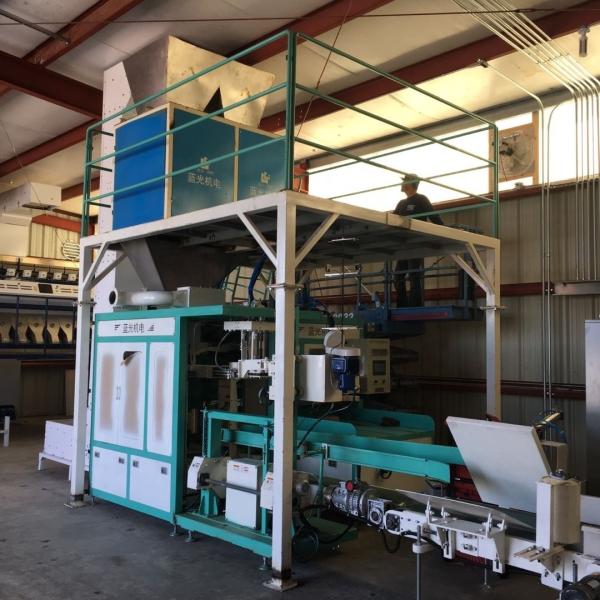

    ZDBZ-600 automatic packaging system is composed of our company's quantitative weighing system, automatic bag feeding and loading device, automatic bag clamping device, automatic bag moving machine, belt conveyor, automatic sewing machine and so on.
    The entire set of equipment from material weighing, unloading, bag removal, bag clamping, bag moving, labeling, sewing and other actions are all automatically controlled. The staff only needs to arrange the packaging bags and labels and place them in the designated location of the device. The work is simple and easy, and one person can monitor several sets of equipment at the same time.
    Specification
    The full automatic bagging stitching machine included the weighing machine, unloading machine , bag removal machine, bag clamping device, bag moving machine , labeling machine, sewing machine and other actions.
    Whole set are controlled by the PLC system and full touch screen panel(HMI), it's full automatic, no need worker placing the empty bags.
    It can storage 400pcs empty bags one time, automatic pick up the empty bags by the suckers, automatic bag giving, automatic bag clamp and release, automatic bag holding and moving, automatic bag sewing, and next process can connect with our automatic palletizer for stacking bags on pallet full automatically.
    ItemZDBZ-600 FULL AUTOMATIC BAGGING SEWING MACHINE
    Application materialseach type small size granule mateials such as animal feed, fertilizer, rice, grains, PE,PP etc
    Weighing range20-50kg/bag or customized
    Scale interval10g
    Feeding typegravity feeder/belt feeder
    Weighing hopperdual-weighing hopper
    Precision±50-100g based on your materials characteristics
    Capacityaround 600bags/hour
    SystemPLC system and 10" full touch scren HMI
    Aplicable bag typeairtight bags, woven bags with lining, paper bags, kraft bags etc
    recommend bag size: width 50-65cm, length 80-110cm or customized
    Air source0.5-0.8Mpa, 750nl/min
    Dimensiion(L*W*Hmm)4000*2800*2400mm, details size see the drawing
    Power4.28kw
    Voltagesingle/three phase AC220V/AC380V/50HZ
    Working environment(-10℃~40℃)
    Relative humidity≤90%RH non condensation
    Machine materialsQ235 carbon steel with anti-rust painting or product contact parts 304 stainless steel, non-contact parts carbon steel.
    Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine
    Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine
    After Sales Service
    The machine before sent to you will installation and testeing welled in our factory. When the machine arrived you, we can provide
    the following service to help you installation, debugging and opeation the machine:
    1, Field installation, commissioning and worker training
    2, Video technical support
    3, Online support
    4, Free spare parts
    5, Field maintenance and repair service
    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging serviceswill be provided.

    1, inner package with stretch anti-rust and avoid the machine surface broken.
    2, the full automatic packing machine before send to you will installation and testing welled then whole set package in
    40HQ(container), the machine weight around 4000kg.


    Jiangxi Blueray Mechanical & Electrical Equipment CO.,LTD
    Jiiangxi Blueray is a 20 years professional manufacturer of semi automatic packing machine, full automatic bagging stitching machine, automatic palletizer, sewing machine, heat sealing machine, conveyor etc. The factory located in Nanchang city Jiangxi province with convenient transportation access.
    All of our products have got the CE, B.V, CMC certificate and exported to more than 50 countries all over the world.
    OEM and ODM orders are welcomed.
    Full auto 500-600 bag per hour quantatitive peanut corn wheat rice bagging machine
    FAQ
    1. Can you offer oversea service?
    Engineers available to service overseas. Also we will provide you manual, photos, video to help you operation the machine and 24 hour online service if you have any problem about the packaging machine.

    2. How to use the machine?
    Before send to you the packing machine, we will installation and testing welled then whole set packed in the wooden box, so you no need installation again, when you received it, you can start working, also we will supply the installation catalogue or video online, if necessary we can dispatch engineers to your site.

    3. How about the guarantee period?
    One year whole machine guarantee, and spare parts provide.

    4. What is the lead time?
    15-30days days after received the deposit, final as per your order.
